Now make it!

Source code

/*

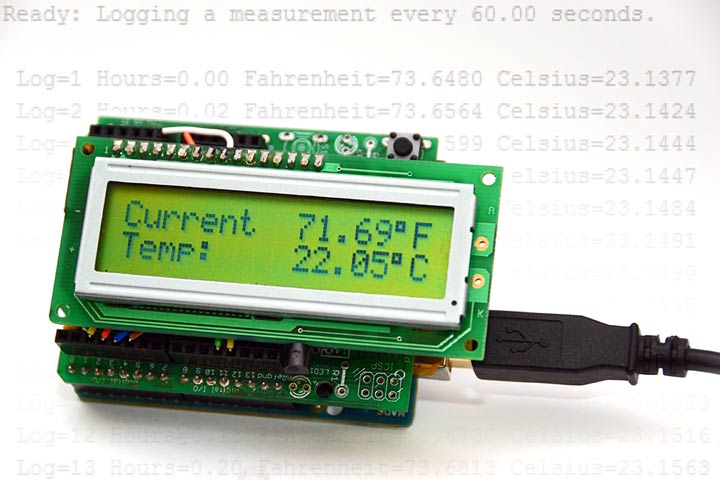

 * This is a simple LCD thermometer that displays the temperature in
 * Fahrenheit, Celsius, and/or Kelvin on both an 16x2 LCD and through serial.

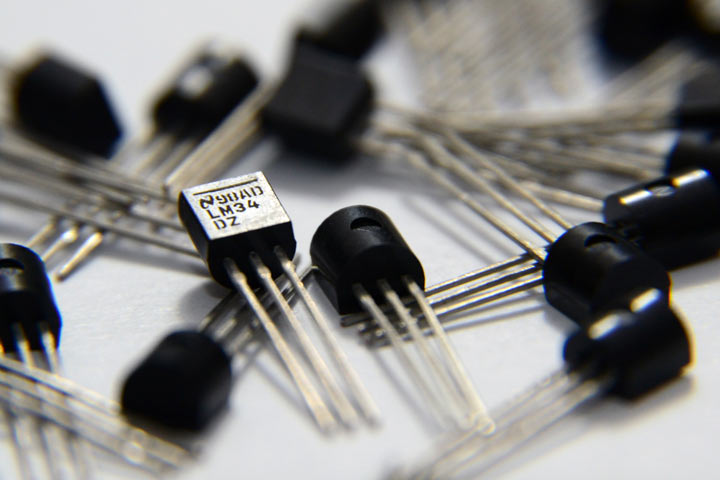

 * It uses the LM34 Precision Fahrenheit Temperature Sensor which outputs a
 * linear DC voltage relative to its temperature. (720mV = 72.0°F).
 *
 * We are using the internal analog reference of 1.1v to improve our
 * resolution at the cost of range. Consequently, our temperature range
 * becomes 0°F to 110°F (-17°C to 43°c), which is perfect for most uses.
 *
 * We can't read negative voltages on the analog pin, so if we use the LM35
 * Precision Celsius Temperature Sensor (and alter the float math variables),
 * our range will become 32°F to 230°F (0°C to 110°c).
 *
 * Visit thestuffwebuild.com for more.
 */

// We need the lcd library
#include <LiquidCrystal.h>

// Setup lcd pins

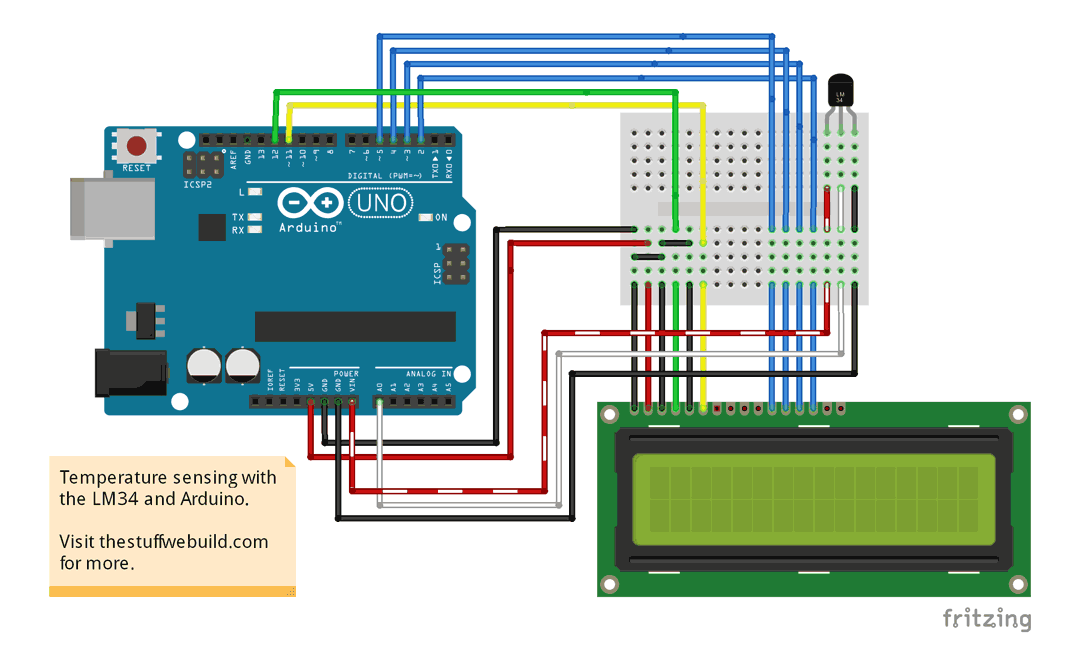

LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

// Serial-log a measurement every 'this many' milliseconds
//long interval = 0; //log asap (~22500 measurements an hour)
//long interval = 2000; //1800 measurements an hour
//long interval = 10000; //360 measurements an hour
long interval = 60000; //60 measurements an hour
//long interval = 3600000; //1 measurement an hour


// This is how many samples you will average per measurement.
// Hint: if this is set at or near 1, you will have a slow recovery time.
unsigned long samples = 1000;

// Running-average factor; 1=disabled; approaching 0 means more averaging
float alpha = 0.01;

// Set our analog reference voltage constant
float vRef = 1.1;

// Variable used for counting the samples for running average
int count;

// AnalogRead variable
int a;

// Running averaged analog variable
float ra;

// Output variables
float v, f, c, k;

// Time alive variables (max ~50 days ea. till overflow)
float h, m;

// Variable used to count how many measurements we have taken
unsigned long n;

// Variable to display the logging interval in seconds at startup
float intervaltosec;

// Variables used for timing the logging interval
unsigned long currentMillis;
unsigned long previousMillis;

// Used to make sure we have enough time to measure and write to the LCD
unsigned long dlyconst;

// Variable used to subtract setup time from logging time.
float ttb;

// We'll use the internal LED 13 to tell us when we are sampling
int led = 13;


//////////////////////////////////////////////////////////////////////////////
////////////////////////////// setup procedure ///////////////////////////////
//////////////////////////////////////////////////////////////////////////////
void setup() {

  // Set aRef to internal 1.1v
  analogReference(INTERNAL);
  // Sample A0 once to initialize new aRef.
  analogRead(0);

  // Again, we'll use the internal LED for debugging, set it as an output
  pinMode(led, OUTPUT);

  // Start serial
  Serial.begin(9600);

  // Start lcd
  lcd.begin(16, 2);

  // Write these lines to lcd
  // Note: the F("...") keeps the string in flash.
  lcd.setCursor(0, 0);
  lcd.print(F("Current"));
  lcd.setCursor(0, 1);
  lcd.print(F("Temp:"));

  // Convert interval milliseconds to seconds
  intervaltosec = interval / 1000.0;

  // Print what we are doing and that we are ready
  Serial.print(F("Ready: Logging a measurement every "));
  Serial.print(intervaltosec);
  Serial.println(F(" seconds."));
  Serial.println();

  // See how long it took to boot up
  ttb = millis();

  // Determine the time required to measure and use the LCD
  dlyconst = samples / 12;
}

///////////////////////////////////////////////////////////////////////////////
////////////////////////////// logging procedure //////////////////////////////
///////////////////////////////////////////////////////////////////////////////
void logging(){

  // Add one to "n"
  n++;

  // Calculate number of minutes alive (hijack "currentMillis" for accuracy)
  m = (currentMillis - ttb) / 60000.00;

  // Calculate number of hours alive
  h = m / 60.00;

  // Serial print all values
  // Hint: for logging, you can comment in or out strings you want/don't want.

  // Number of logged measurements
  Serial.print(F(" Log="));
  Serial.print(n);

  // Minutes alive
  //Serial.print(F(" Minutes="));
  //Serial.print(m, 2);

  // Hours alive
  Serial.print(F(" Hours="));
  Serial.print(h, 2);

  // Raw analog value
  //Serial.print(F(" Raw_analog="));
  //Serial.print(a);

  // Running average analog value
  //Serial.print(F(" Avgeraged_analog="));
  //Serial.print(ra, 4);

  // Volts on analog pin
  //Serial.print(F(" Voltage="));
  //Serial.print(v, 4);

  // Fahrenheit
  Serial.print(F(" Fahrenheit="));
  Serial.print(f, 4);

  // Celsius
  Serial.print(F(" Celsius="));
  Serial.print(c, 4);

  // Kelvin
  //Serial.print(F(" Kelvin="));
  //Serial.print(k, 4);

  // New line
  Serial.println();

}


//////////////////////////////////////////////////////////////////////////////
///////////////////////////// lcdprint procedure /////////////////////////////
//////////////////////////////////////////////////////////////////////////////
// (Runs as fast as possible until "dlyconst" milliseconds is reached.)
void lcdprint(){

  //-------------------------------------------------------------------
  //----------------------------lcd print f----------------------------
  //-------------------------------------------------------------------

  // Set our f cursor position depending on the size of our number f.
  lcd.setCursor(((f >= 100 || f < -10)?7:8), 0);
  // This extra space only required if f falls between here:
  if( f < 10 && f >= 0 ) lcd.print(' ');

  // Common lcd print code
  lcd.print (' ');
  lcd.print (f);
  lcd.print ((char)223); // ° symbol
  lcd.print ('F');

  //-------------------------------------------------------------------
  //----------------------------lcd print c----------------------------
  //-------------------------------------------------------------------

  // Set our c cursor position depending on the size of our number c.
  lcd.setCursor(((c >= 100 || c < -10)?7:8), 1);
  // This extra space only required if c falls between here:
  if(c < 10 && c >= 0) lcd.print(' ');

  // Common lcd print code
  lcd.print (' ');
  lcd.print (c);
  lcd.print ((char)223); // ° symbol
  lcd.print ('C');

  /*
   //------------------------------------------------------------------
   //---------------------------lcd print k----------------------------
   //------------------------------------------------------------------

   // Our range in Kelvin is 255-316°K; we never need to move the decimal.
   lcd.setCursor(7, 1);

   // Common lcd print code
   lcd.print (' ');
   lcd.print (k);
   lcd.print ((char)223); // ° symbol
   lcd.print ('K');
   */
}


//////////////////////////////////////////////////////////////////////////////
///////////////////////////// sampcalc procedure /////////////////////////////
//////////////////////////////////////////////////////////////////////////////
// (sampcalc = sample and calculate)
void sampcalc(){

  // Turn on led here, we begin sampling
  digitalWrite(led, HIGH);

  // Average "samples" samples to eliminate error and recovery time
  // Hint: it takes roughly 160ms to average 1000 samples.
  while (count < samples) {

    // Read analog
    a = analogRead(0);

    // Find running average
    ra = alpha * a + (1-alpha) * ra;

    // Increment "count" by one
    count++;
  }

  // Turn off led here, we are done sampling
  digitalWrite(led, LOW);

  // Reset count
  count = 0;

  // Analog average to voltage math
  v = (ra * vRef) / 1024.00;

  // v to f math
  f = v * 100.00;

  // f to c math
  c = (f - 32) * 0.555555;

  // f to k math (because why not)
  k = (f + 459.67) * 0.555555;
}


//////////////////////////////////////////////////////////////////////////////
/////////////////////////////// loop procedure ///////////////////////////////
//////////////////////////////////////////////////////////////////////////////
void loop() {

  // Check the time
  currentMillis = millis();

  // See if we have time to write to the LCD
  if(currentMillis - previousMillis < interval - dlyconst) {

    // Take a sample
    sampcalc();

    // Commence printing procedure
    lcdprint();
  }

  // See if it is time to log something to serial
  if(currentMillis - previousMillis >= interval || n == 0) {

    // Set previousMillis to currentMillis so we know next when to log again.
    previousMillis = currentMillis;

    // Take a sample
    sampcalc();

    // Commence serial logging feature
    logging();

    // Might as well print to the LCD while we are here
    lcdprint();
  }

}
